Pneumatic cncentrator

Overview

【Product Introduction】:

The light material air sorter sorts materials by density and particle size under the action of airflow. Airflow can carry lighter materials (such as paper, plastic bags, films, etc.) upwards or horizontally towards farther places; Heavy materials, on the other hand, fall due to the inability of the upward airflow to support them, or are thrown out at a closer distance in the horizontal direction due to inertia.

【Production capacity】:20-75 tons/hour

【Feed particle size】: suitable for mixed materials of light materials (such as plastic bags, woven bags, paper sheets) and heavy materials (mixed materials with large density differences).

【Applicable objects】:household waste, industrial solid waste, papermaking waste, wastewater treatment plant waste, textile waste, leather waste, shredded cloth waste, etc.

【Product nickname】: Garbage air sorting machine, wind screening equipment, airflow specific gravity sorting machine.

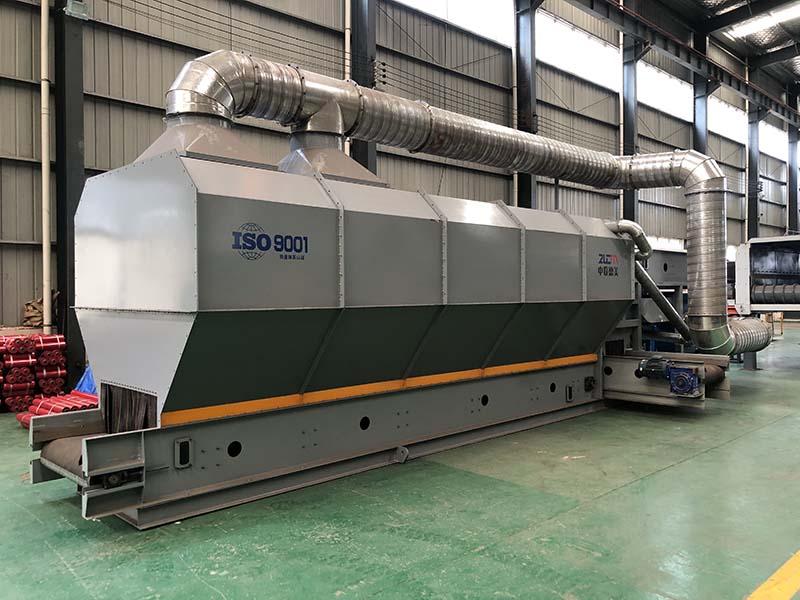

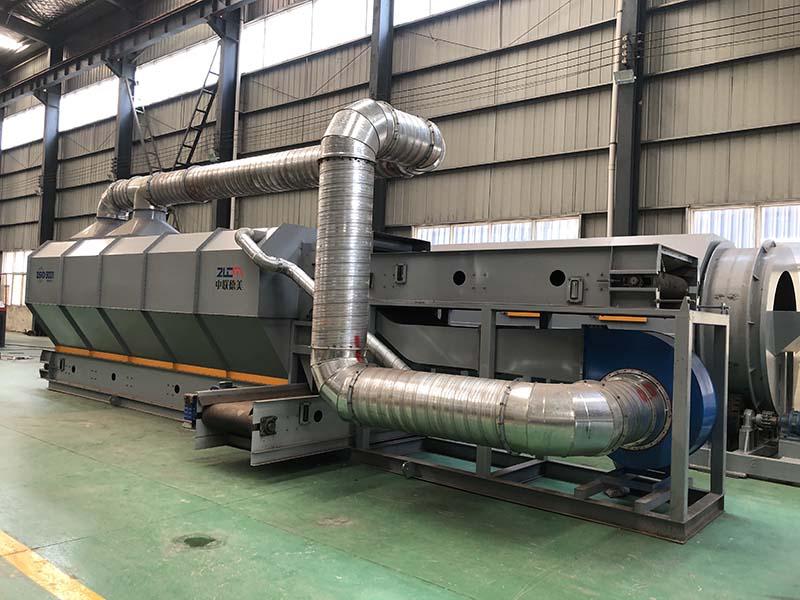

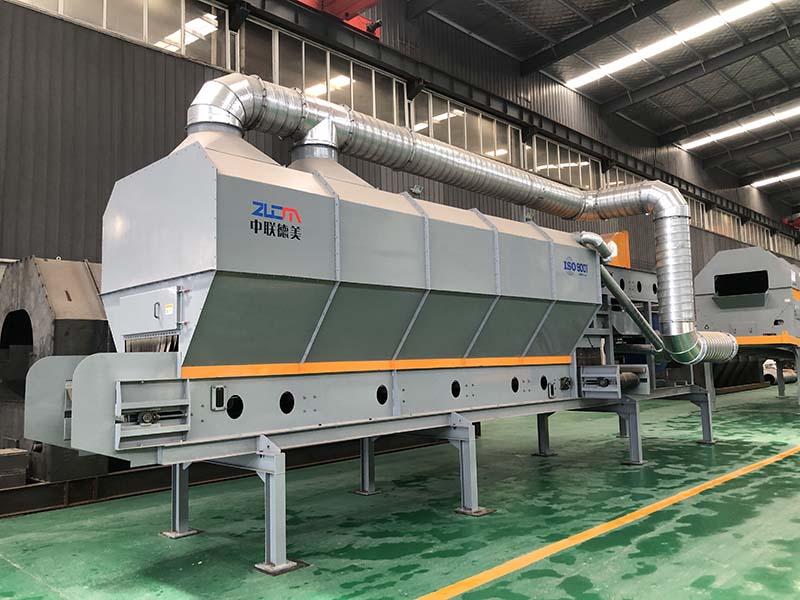

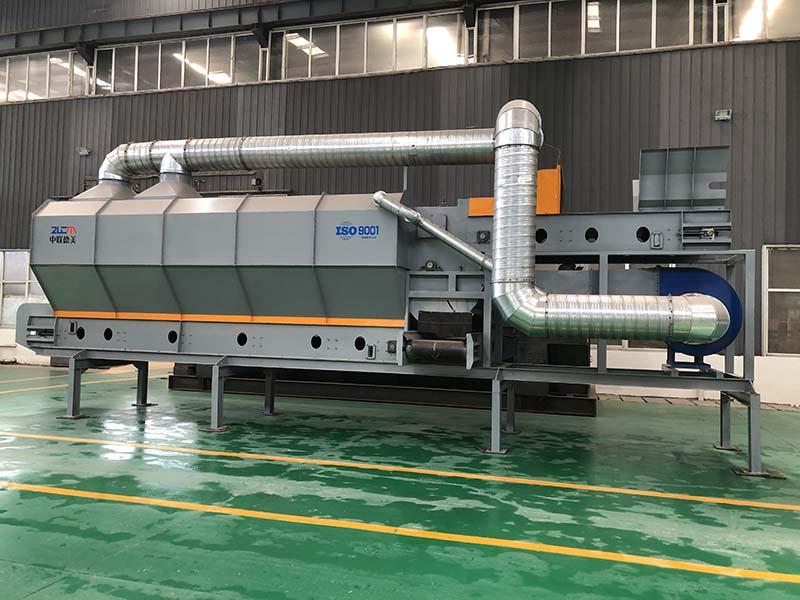

【Product Images】:

【main function】:

The garbage sorting machine consists of a centrifugal fan, a rotating separation drum, a belt conveyor, and a light substance settling chamber. Based on the principles of aerodynamics, the equipment uses controllable airflow as the sorting medium to achieve efficient sorting of materials according to density and particle size under the joint action of positive and negative pressure airflow: lighter materials (such as paper sheets, plastic bags, cloth strips, films, etc.) are carried by the airflow to distant areas or rise to the settling chamber; Heavier materials naturally fall due to the inability of airflow to support them, or fall in closer areas due to inertia. This process is based on the settling law of solid waste in the air, achieving precise classification and facilitating subsequent recycling and utilization.

As a mature and efficient sorting method, lightweight material air separators are widely used in the fields of solid waste treatment and household waste resource utilization. They are highly favored by customers due to their large output, good sorting effect, and wide applicability.

【working principle】:

1. The garbage sorting machine utilizes aerodynamic principles to separate light and fine substances from materials such as household waste and industrial solid waste under the coordinated action of controllable positive and negative pressure airflow, and sends them into the settling chamber. Effective separation of materials and air is achieved through sedimentation.

2. The feeding conveyor adopts frequency conversion control, which can automatically adjust the feeding speed according to the output air volume, wind speed, and air pressure, match the characteristics of different material components, and improve the sorting efficiency.

3. The exhaust duct is equipped with a connection interface with the dust removal and deodorization system to ensure that the exhaust gas meets the emission standards and effectively controls the pollution to the environment.

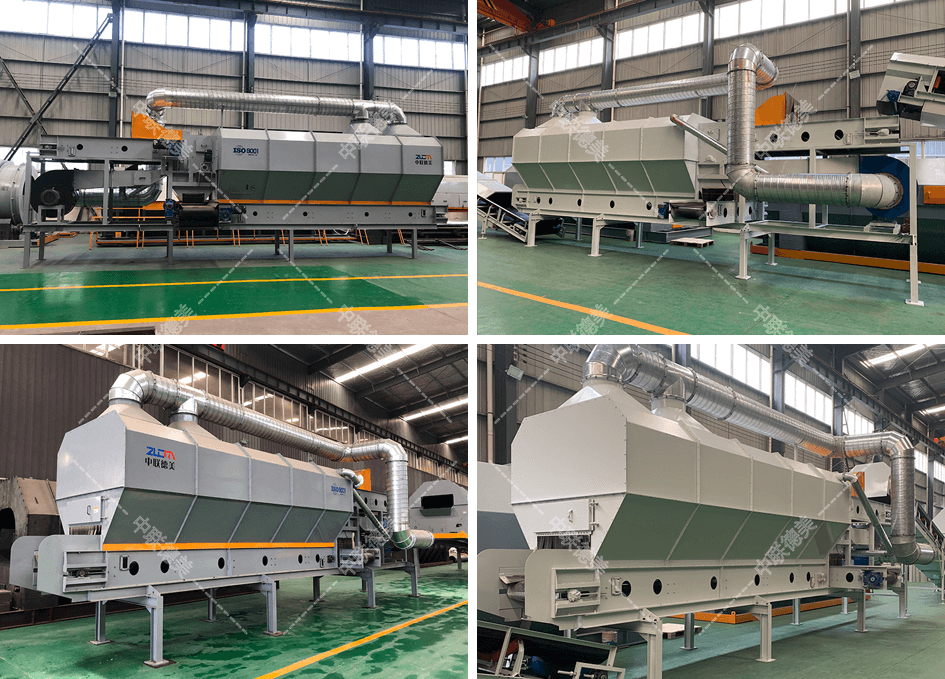

【On-site use】：

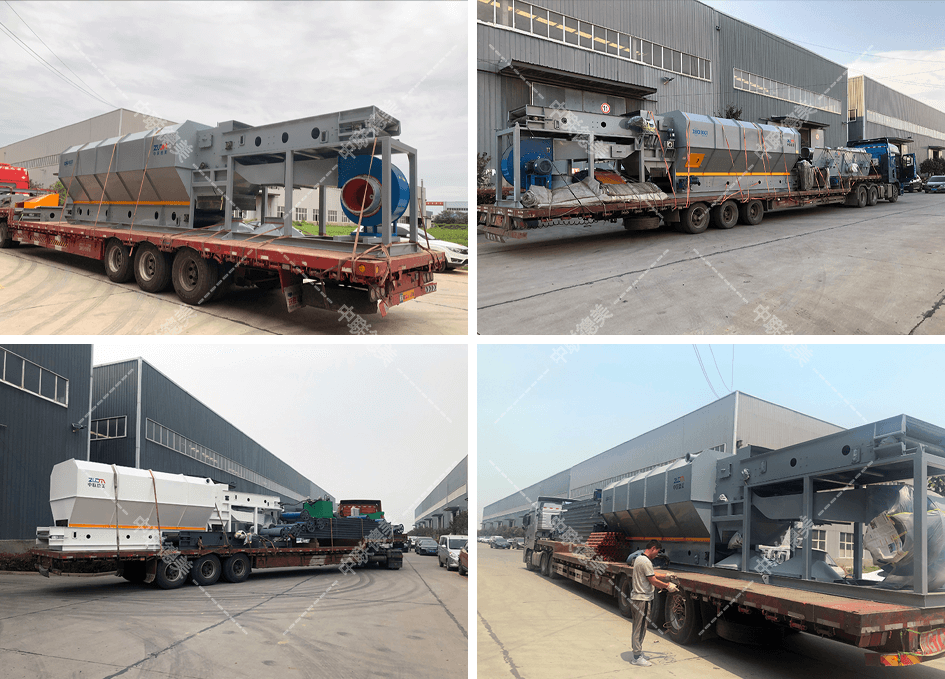

【Shipping Photos】:

Technical Parameters
