Disc screen

Overview

【Product Overview】:

A disc screen is a device that uses multiple sets of star-shaped or disc-shaped rotors rotating alternately to screen and separate materials. It is particularly suitable for processing mixed waste containing a large amount of lightweight, flaky, fibrous, or entangled impurities. Its open structure and strong agitation capability can efficiently separate fine materials and large debris from municipal solid waste, construction and renovation waste, aged waste, and industrial solid waste. It is widely used in waste resource recovery, recycled aggregate pretreatment, and pre-composting sorting processes.

【Production Capacity】:

10–250 t/h (Actual capacity is adjustable based on the number of rotors, rotational speed, disc spacing, and material characteristics)

【Applicable Materials】:

Loose mixtures containing lightweight or flaky materials such as paper, plastics, textiles, and wood chips, including municipal solid waste, construction and renovation waste, demolition and construction waste, aged landfill waste, garden waste, industrial solid waste, and composting raw materials.

【Product Aliases】:

Star-shaped screen, disc screen, star roller screen, garbage disc screen, material feeding screen

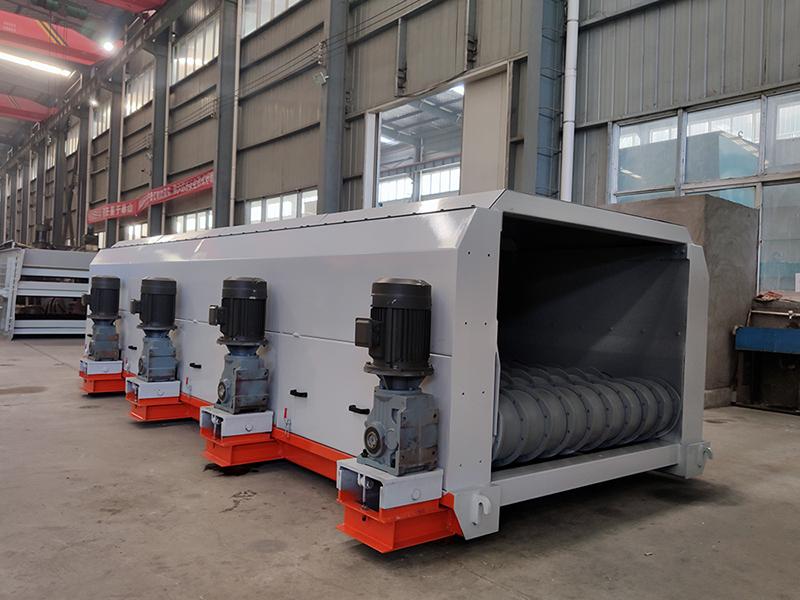

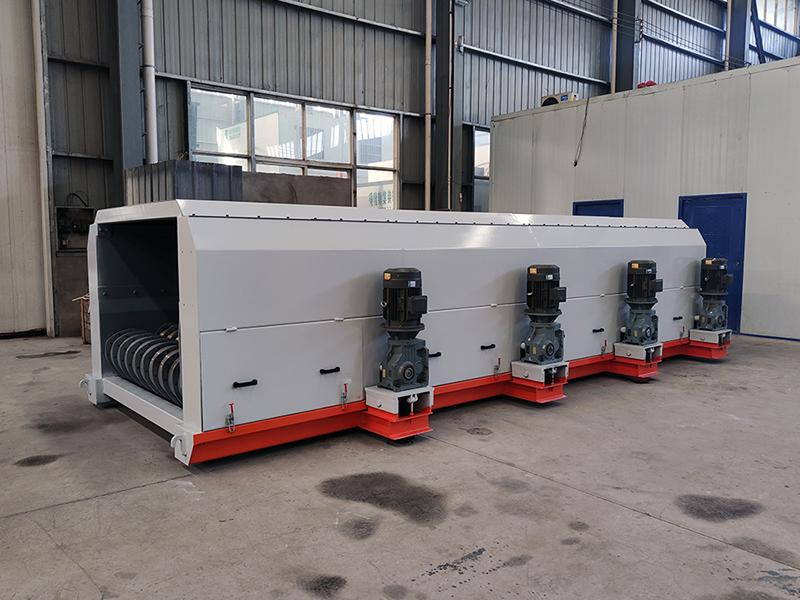

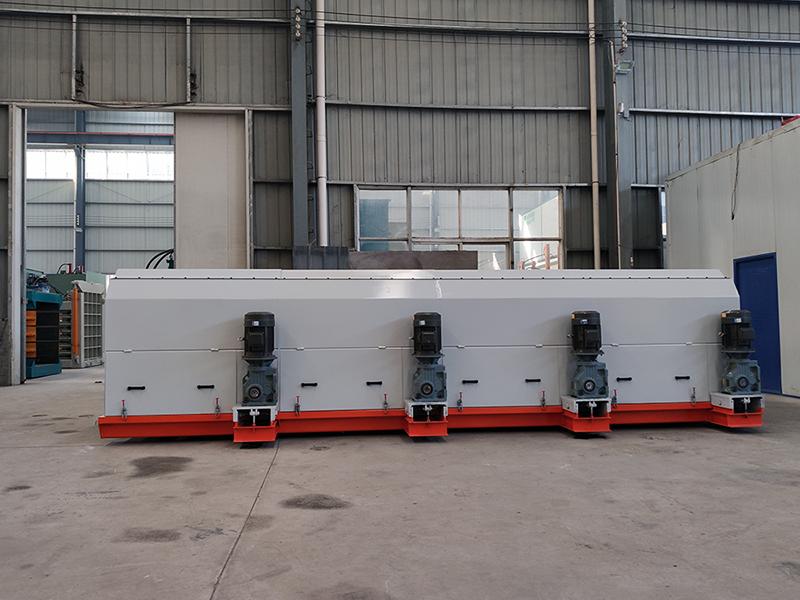

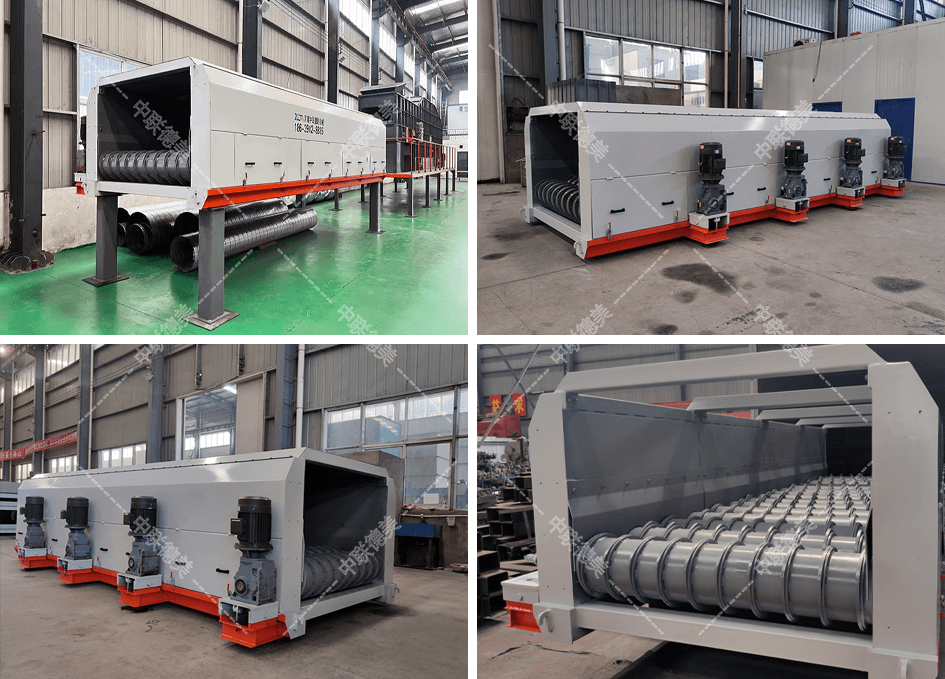

【Product Images】:

【Product Introduction】:

This equipment consists of multiple parallel shafts, each equipped with several star-shaped or disc-shaped feeding teeth (discs). The discs on adjacent shafts interlock. When the shafts rotate in the same direction or at different speeds, the material is repeatedly agitated, tumbled, and shaken between the discs. Fine materials fall through the gaps between the discs, while larger or tangled materials are pushed to the discharge end. The discs can be made of wear-resistant alloy steel, high-polymer engineering plastics, or composite materials, balancing wear resistance and non-stick properties. The equipment has an open structure and strong self-cleaning ability, effectively handling high-humidity and high-mixture garbage conditions. It can be integrated with crushers, air separators, magnetic separators, etc., to form an integrated sorting line.

【Working Principle】:

After entering the screen chamber, the material is continuously tumbled and moved forward under the forced agitation of the rotating discs. Particles or debris smaller than the disc gap pass through the gap under gravity and become undersize material; larger objects such as lumps, plastic bags, and fabrics are pushed to the end of the screen and discharged. By adjusting the disc spacing, rotation speed, and shaft phase, the separated particle size and processing efficiency can be precisely controlled.

【Product Advantages】:

1.Strong Anti-clogging and Anti-entanglement: Open structure + active material feeding effectively handles wet, sticky, fibrous, and film-like materials with minimal clogging;

2.High Separation Efficiency: Excellent sorting capability for flaky, strip-shaped, and lightweight impurities, improving the stability of downstream equipment operation;

3.Flexible Particle Size Adjustment: Adaptable to different screening particle size requirements (typically 5–80mm) by replacing discs or adjusting shaft spacing;

4.Good Self-Cleaning Performance: Discs scrape against each other during rotation, reducing material adhesion and maintaining long-term stable operation;

5.Robust and Durable Structure: Reinforced design of the main shaft and discs, adaptable to high-load, high-impact waste treatment environments;

6.Easy Maintenance: Modular shaft assembly design allows for independent replacement of individual shafts or discs, minimizing downtime;

7.Compatible with Intelligent Production Lines: Supports variable frequency speed control, automatic unclogging, and PLC linkage control, facilitating integration into automated sorting systems.

【Usage Site】:

【Shipping Photos】:

Technical Parameters
